About Shiv Rubber Products
Our Legacy
Shiv Rubber Products, established in 2016, is a trusted pioneer in manufacturing precision rubber-molded parts, anti-vibration mounts, and rubber-to-metal bonded components. We cater to automotive and industrial applications with a focus on quality, durability, and customized solutions to meet diverse client needs.
Hello
Welcome to Shiv Rubber Products
We specialize in providing high-quality products and exceptional service. Our expertise in the manufacturing industry allows us to meet all your needs. Contact us today to learn more about our services and how we can help your business.
Our Products

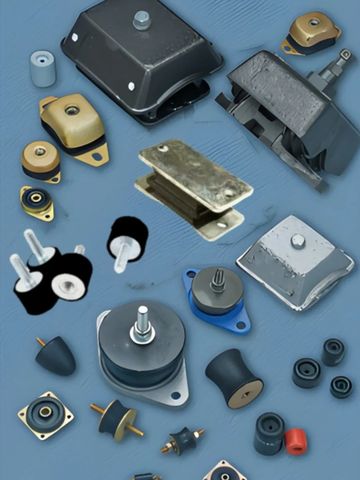

Anti Vibration Mounts(AVM)
Our anti-vibration mounts are designed to minimize noise, absorb shocks, and reduce vibrations in machinery and equipment. Built for durability and precision, they enhance operational stability and extend the lifespan of industrial and automotive systems. Customized to meet specific requirements, our mounts ensure reliable performance across diverse applications.

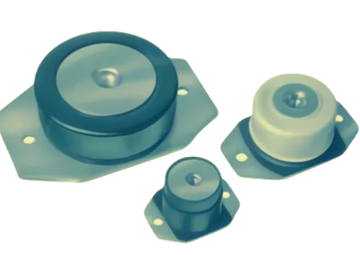

SRP G Series AV Mounts
Mounts for Generator Set and Other Applications
SRP G1 mounts are designed for light-duty applications with a load capacity ranging from 100kg to 450kg. Stud Size: M12/M16, CD (Center distance): 120mm
SRP G2 mounts are designed for medium-heavy applications with a load capacity ranging from 400kg to 1080kg. Stud Size: M16 CD: 180mm
SRP G3 mounts are designed for high-load applications, supporting equipment weighing from 600kg to 2200kg. Stud size: M3, CD: 180mm

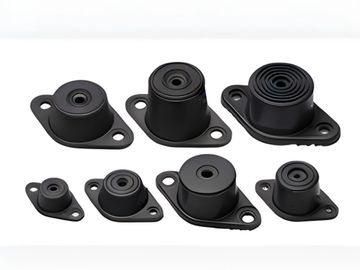

P Series Mounts
Typically used to isolate Engine, fans, pumps, generators, AC units & general machinery.
SRP-1 Series: Light duty mounts with load capacities ranging from 25kg to 80kg.
SRP-2 Series: Medium duty mounts supporting loads from 100kg to 250kg.
SRP-3 Series: Medium-heavy duty mounts handling loads from 145kg to 500kg.
SRP-4 Series: Heavy duty mounts designed for the highest loads, ranging from 680kg to 1800kg.
Each series is available SRP-"x"D variant offering higher vibration isoloation.

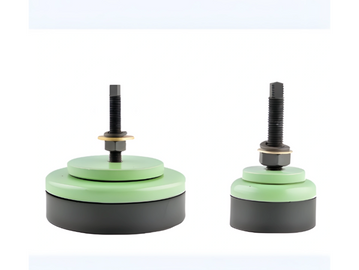

Machine Mounts
Machine mounts are designed to support heavy/sensitive machineries and isolate continuous vibrations along with providing levelling feature.
SRP-M-3: Adjustable height from 57mm to 70mm, supports a maximum load of 1000kg.
SRP-M-4: Adjustable height from 64mm to 80mm, supports a maximum load of 2200kg.
SRP-M-1000: Adjustable height from 54mm to 74mm, supports a maximum load of 1000kg.
SRP-M-2500: Adjustable height from 66mm to 86mm, supports a maximum load of 2500kg
Rubber Buffer
The rubber buffers have been designed to damp vibrations, shocks and noises produced by moving bodies or non-balanced vibrating masses of equipment and machines .

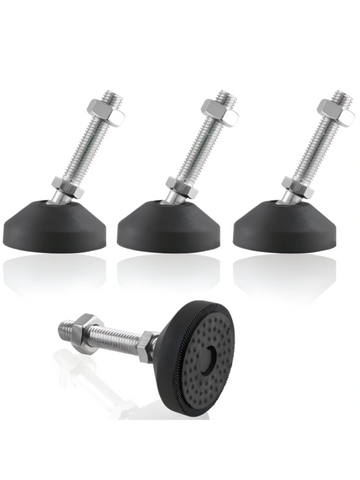

Leveling Feet (Plastic)
Leveling mounts include leveling components with fiber glass reinforced polyamide base, which helps distributing the load to the ground. Applications in which these levelling feet can be used are: Conveyor systems, packaging, aluminium structures, automation system and many more.

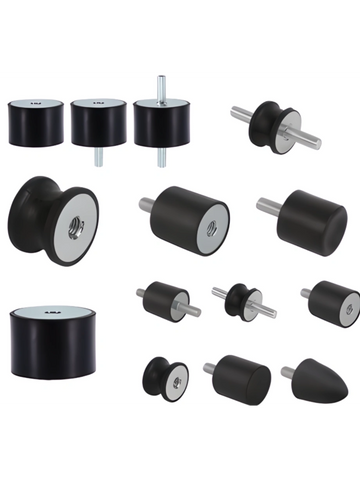

Other Mounts
We manufacture many more type of standard or customized mounts as per industrial request. Some of the standard type of mount includes below -
Sandwitch mounts, Double U sheer mounts, Core mounts, Combi mounts, Machine feet mounts etc.
Rubber Based Sealing Solutions
Components designed to prevent leakage between two surfaces by creating a tight closure, and different types of seals are used depending on the application, with common examples including O ring, Gaskets, Seals, Diaphragm etc.
O Rings
Helps to seal joins between separate parts and prevent leaking of fluids and gases
Material: Natural Rubber, Polyisoprene (NR, IR), Nitrile, Buna-N (NBR), Fluorosilicone(FVMQ), Ethylene Propylene (EPDM), Viton, Silicone, Neoprene, Chloroprene, etc
Size: We offer all standard size. Additionally, we offer to develop special purpose size as per requirements
Mechanical Gaskets
Helps to seal joins between separate parts and prevent leaking of fluids and gases.
Material: Natural Rubber, Polyisoprene (NR, IR), Nitrile, Buna-N (NBR), Fluorosilicone(FVMQ), Ethylene Propylene (EPDM), Viton, Silicone, Neoprene, Chloroprene, etc
Size: We offer all standard size. Additionally, we offer to develop special purpose size as per requirements
Oil / Fluid Seals
Seal helps to stop leaks and guarantee the integrity of the systems.
Available in many different shapes, with different types used for different applications.
Hose, Extruded Components & Customized Rubber Parts
Components designed to prevent leakage between two surfaces by creating a tight closure, and different types of seals are used depending on the application, with common examples including O ring, Gaskets, Seals, Diaphragm etc.
Hoses
We offer moulded and wrapped hoses in various sizes and shaped for Automotive, Industrial, Agricultural, Marine applications.
Wrapped and Mandrel Formed Hoses: Ideal for high-pressure and vacuum applications, these reinforced hoses are manufactured in our state-of-the-art facility for maximum durability.
Mouled Hoses: Custom-moulded to fit complex engine configurations, Moulded hoses ensure optimal fit and clearance . Cost-effective and customizable with tight bend radii, branching.

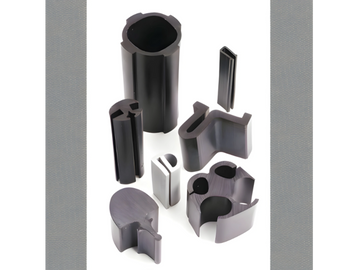

Extruded Components
We specialize in custom rubber extrusions, from simple tubing to complex profiles, tailoring parts to meet the unique needs of each application. We manufacture and supply premium Rubber, Plastic-Rubber bonded, Metal-Rubber bonded extruded parts.
Applications:
- Sealing & Gasketing:
- Weather Stripping
- Tubing & Hoses:
- Vibration Dampening:
- Edge Protection:
- Profiles & Shapes:

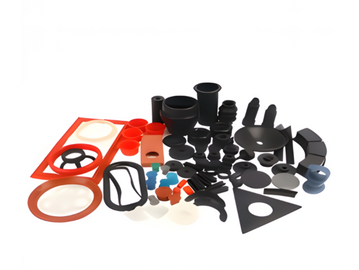

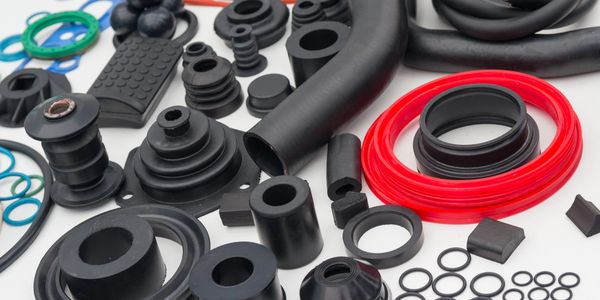

Customized Rubber Parts
We manufacture a diverse range of high-quality customized rubber products, utilizing premium raw materials and offering customization in size and shape to meet your specific needs.
Our products are known for their superior physical and chemical properties, including excellent life, resilience, and abrasion resistance. Widely used across various industries, our products are recognized for their effective performance and long-lasting durability.
